How Launch X431 V read data stream & fault code?

Launch X431 V 8 inch tablet with Bluetooth connection supports full system diagnosis. Today I am going to show you how to use Launch X431 V to read data stream and fault code from a Honda Accord.

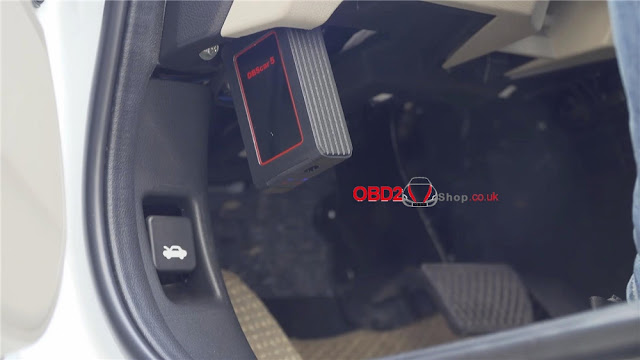

Turn on the ignition, inset Bluetooth adapter to OBD port of the car, then let’s get to start:

Open Launch app on X431 V tablet

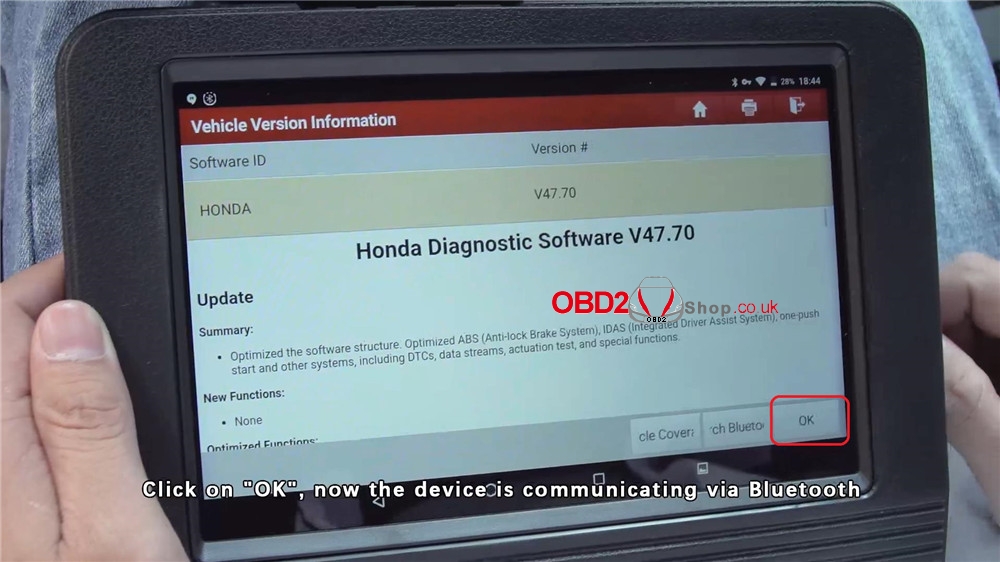

Local Diagnose >> HONDA >> Press “OK”, the device is loading communication...

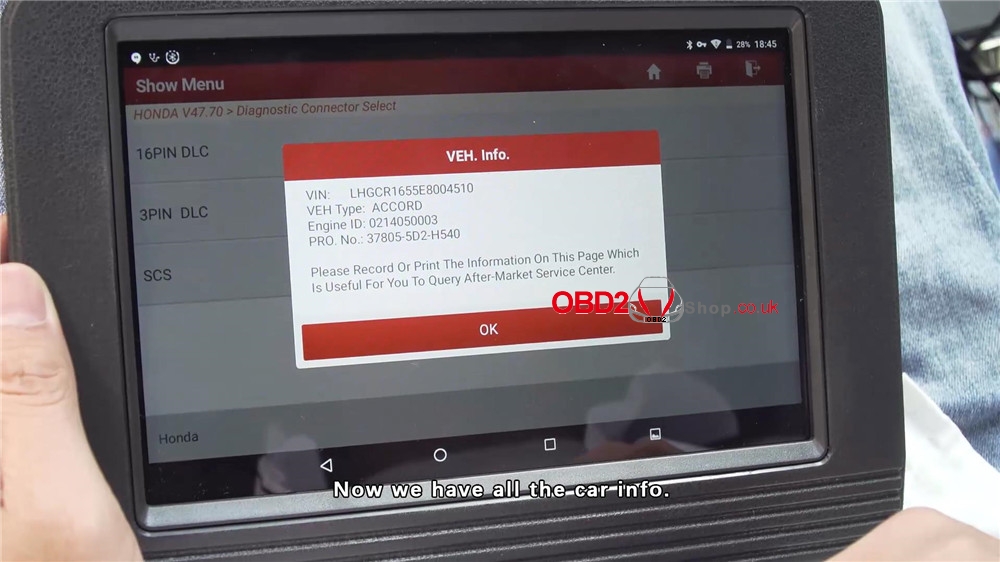

16PIN DLC >> Now you can see the car information on the screen, press “OK”>> System Selection

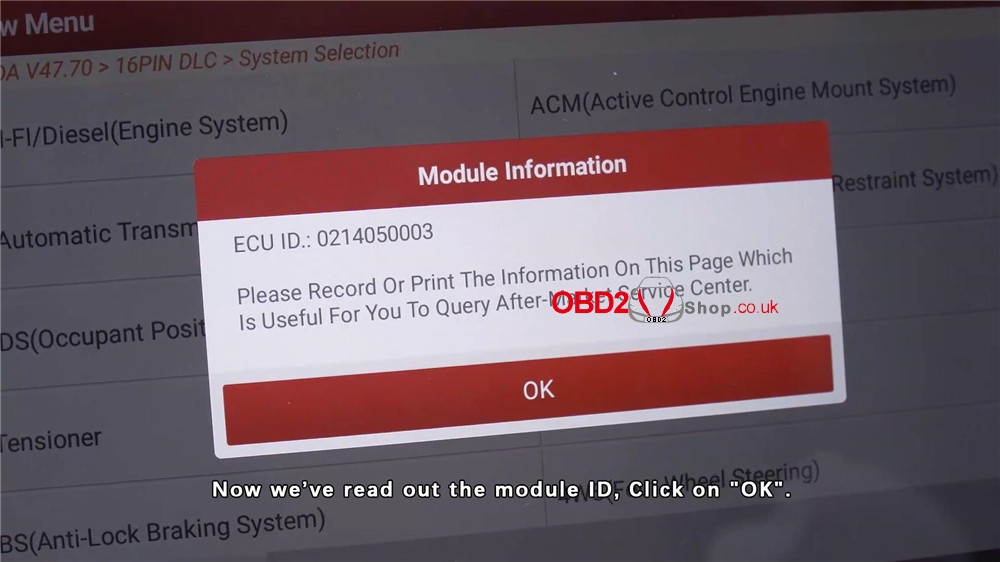

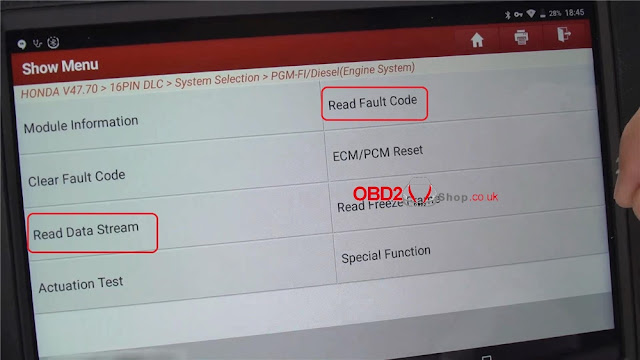

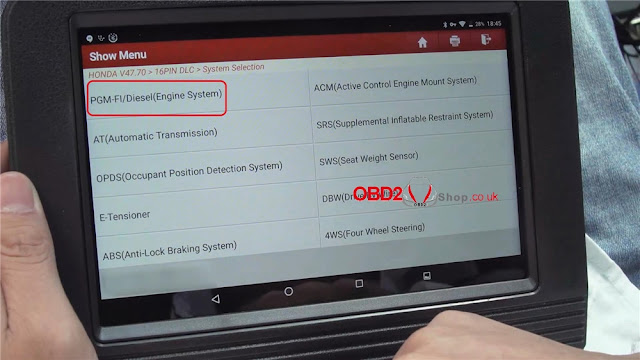

PGM-FI/Diesel (Engine System) >> Now you can see the module information, press “OK”>> Read Data Stream >> Manual Select

Select All >> Start the engine, press “OK”>> Press any icon on the right side to see its waveform

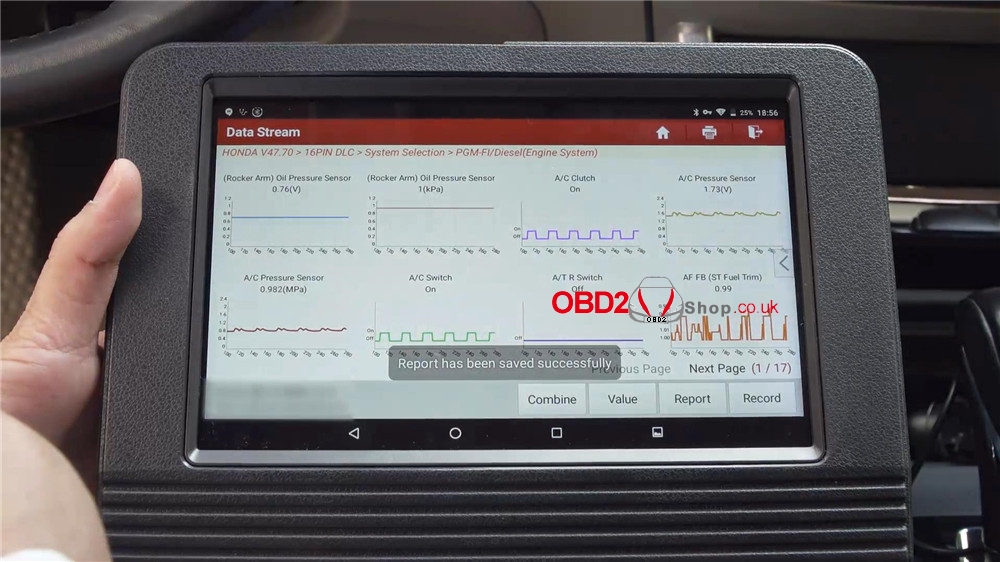

Exit to press “Graph”, you can see 8 waveforms are changing at the same time. All waveforms are normal.

To save the report, press “Report”>> OK >> OK

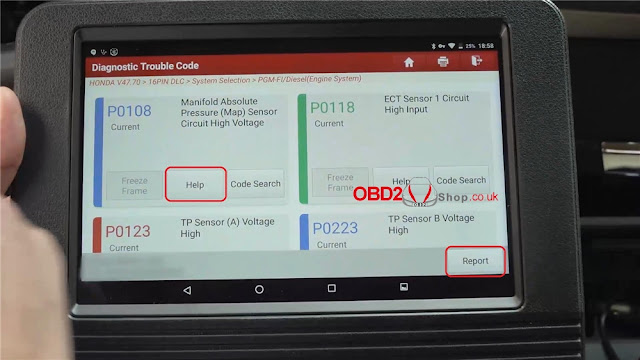

Now exit back to show menu, press "Read Fault Code", you will get a page of different fault codes. The "Help" menu explains codes in details and helps to repair the car.

To save the report, press "Report">> OK >> OK

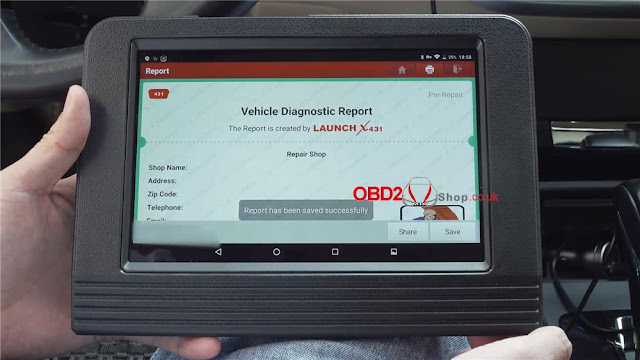

The report has been saved successfully!

Launch X431 V diagnostic tool also support 16 special functions, such as oil reset, IMMO reset, TPMS reset, ABS bleeding, EPB reset, etc.

For more functions overview, please refer to the full video:

Any questions please let us know.
